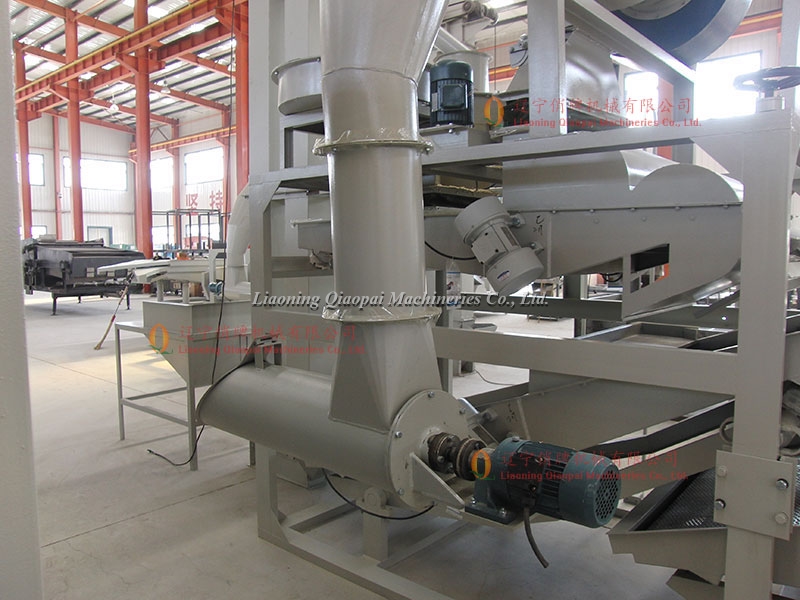

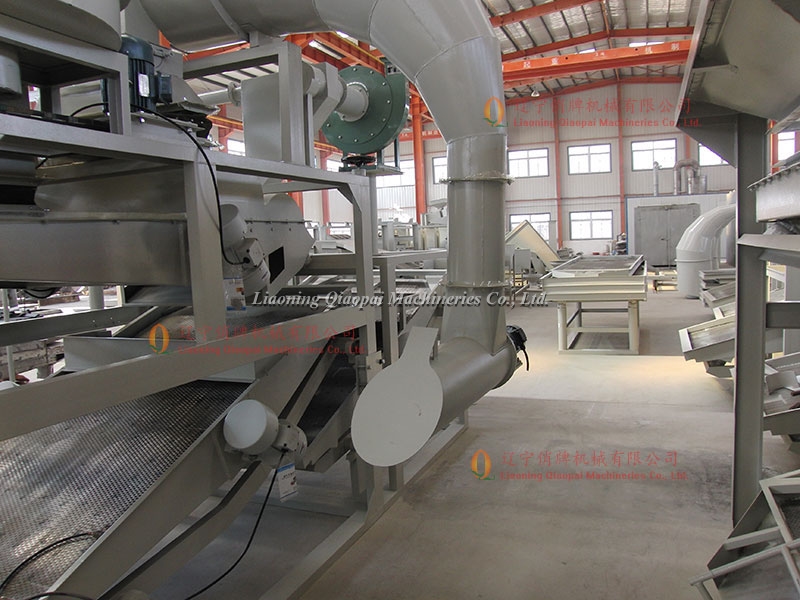

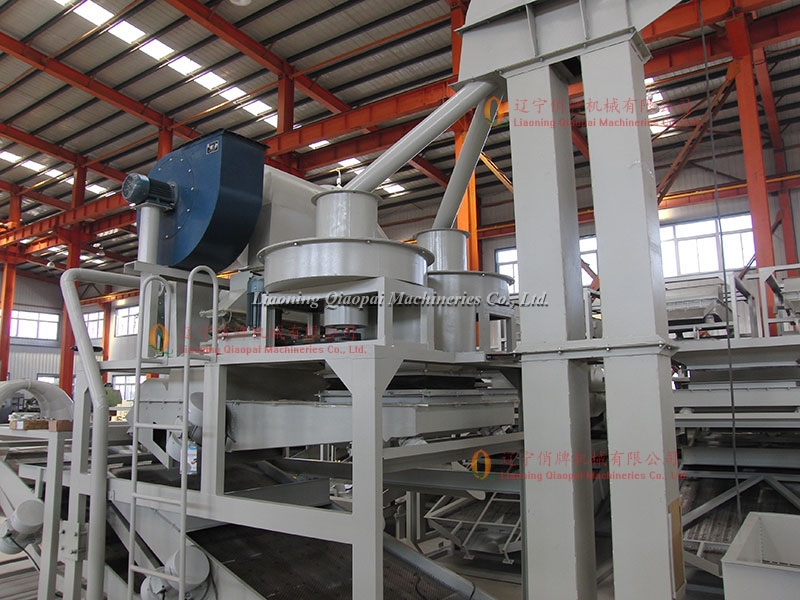

Oat Dehulling and Separating Equipment TFYM-1000

Oat Dehulling and Separating Equipment TFYM-1000

  • Functions and Features

The equipment can complete the dehulling, shells-removing, seed-kernel separating of oats. It features low power consumption, compact structure, minimum space occupation, low loss of kernels, easy operation and maintenance, etc. In regard to its technical parameters, both the dehulling rate and percentage of whole kernel take the leading position in China, and it’s the optimum equipment for oats primary processing.

  • Component

①input hopper
②bucket elevator
③main part of the equipment(dehullers, air separator and seed-kernel separator)
④pneumatic system of back-flowing materials
⑤seed-kernel reseparator
⑥kernels bin
⑦electric control cabinet

  • Technical Parameters
Power: 10.48-11.2kW(380v)
Input Capacity: 0.8-1.0mt/h
% of Whole Kernel: 95% min.
% of Inshell in Kernels: 2% max.
% of Brokens in Shells: 0.5% max.
Overall Dimension (L*W*H): 7.6mx2.8mx4.4m
